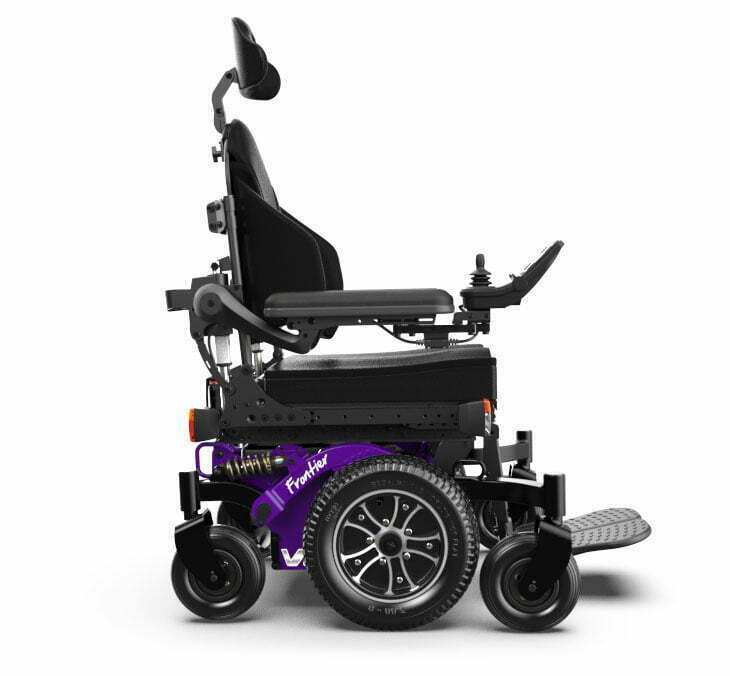

Frontier V6 – Compact 40 MWD Electric Wheelchair
customise your chair
Power in a compact package
Size matters. The baby of the family, the Compact 40 Mid Wheel Drive (MWD) is ideal for negotiating tight turns and handling the hard outdoor surfaces. Small but perfectly formed this ultimate compact will give you improved freedom in and around the streets.
- Drive mode: Mid wheel drive
- Motors: 68Nm Torque, 800W, Gear In Line
- Environment: City streets and tight indoors
-
Well suited to the indoors but still more than capable outdoors
-
Very narrow and compact
-
Proudly Australian made
For 25 years we have been designing, engineering and manufacturing highly robust, all terrain powerchairs in Melbourne, Australia so that active users can experience a world that’s not flat.
-
Splash resistant (not waterproof)
Please remember, the wheelchair has electric motors and must NEVER be driven through water, into rivers, creeks and the sea. Magic Mobility wheelchairs meet Australian Standards 3696 and ISO7176.
Brochures and manuals
Magic Mobility produces world-class electric wheelchairs. Download your Frontier V6 Compact 40 product brochure or Owner’s Manual here.
Technical specifications
| Features | Specifications |
|---|---|
| *Length of base | 910mm (*legrest choice and seating size may increase chair length/width) |
| *Width of base | 655mm |
| Floor to top of seat pan height | 435mm |
| Turning circle (radius) of base | 490mm |
| Weight limit | 182kg (400lbs), 155kg (340lbs) with lift and/or tilt |
| Top speed | 10kph (6.2mph) |
| Motors | 68Nm Torque, 800W, Gear In Line |
| Motor IP Rating 54 (splash resistant but not waterproof) | The wheelchair has electric motors and must NEVER be driven through water, into rivers, creeks and the sea |
| Wheels | Hybrid 14"x3" grey or black (solid or pneumatic) |
| Castors | 200x50mm grey or black (solid or pneumatic) |
| Batteries | Gel |
| Controller | Penny & Giles controller with LCD display (R-Net) or LED option |
| Legrest options | Centre post, manual elevating, power/manual elevating swingaway, centre mount power elevating |
| Backrest and seat | Adjustable seat pan (12” deep to 24” wide) to fit MPS / Rehab or aftermarket seating options |
| Tie down points | Crash test compliant |
When I first used the C40 my daughter and I went on our first neighbourhood walk. She rode her bike and I followed beside her. It was an emotional time...the look on her face was priceless, she's never had me go on walks with her before. Michael Archer, Townsville Australia
