XT4 – Four Wheel Drive Electric Wheelchair

XT4 – Four Wheel Drive Electric Wheelchair

XT4 logo

Tailor your chair

  • Select a Colour:

    Midnight Black

  • Select Wheels:

    Off-road

  • Select Tyre & Rim Colours:

    Black/Silver

  • Disclaimer – Actual colours and designs may vary slightly over time due to differences in product finishes.  Please refer to physical examples for accurate representation.

    The XT4 will be available to trial in Australia and New Zealand from April 2024. You can register your interest in trialling the new XT range here.

    Launch dates for other regions will be announced in the coming months. Please continue to check our website for updates.

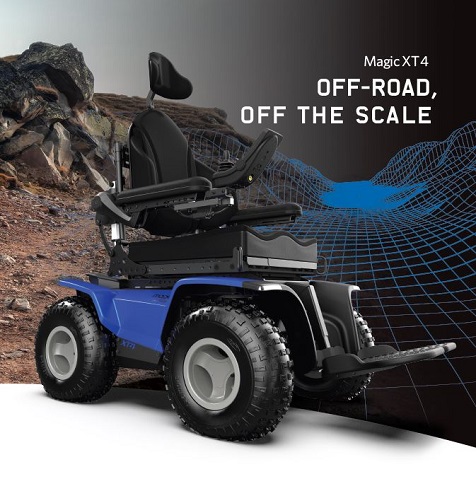

Push your outdoor boundaries further than ever before

Step up to driving the world’s most advanced 4×4 powerchair

The XT4 builds on Magic Mobility’s unrivalled experience in delivering extreme off-road 4×4 powerchair performance by offering even greater stability, range, comfort and control than ever before.

The XT4’s patented front and rear suspension, unique servo-powered steering and high-capacity batteries combine with the proven capabilities of knobby, low pressure tyres driven by unstoppable torque to make it the ultimate chair for outdoor adventurers.

Available for trial in Australia and New Zealand from April 2024. Please register your interest by clicking below.

  • Drive mode: 4 x 4
  • Motors: 4 x 700W Gear in line
  • Environment: Adventurous outdoor exploration and rural work
  • settings

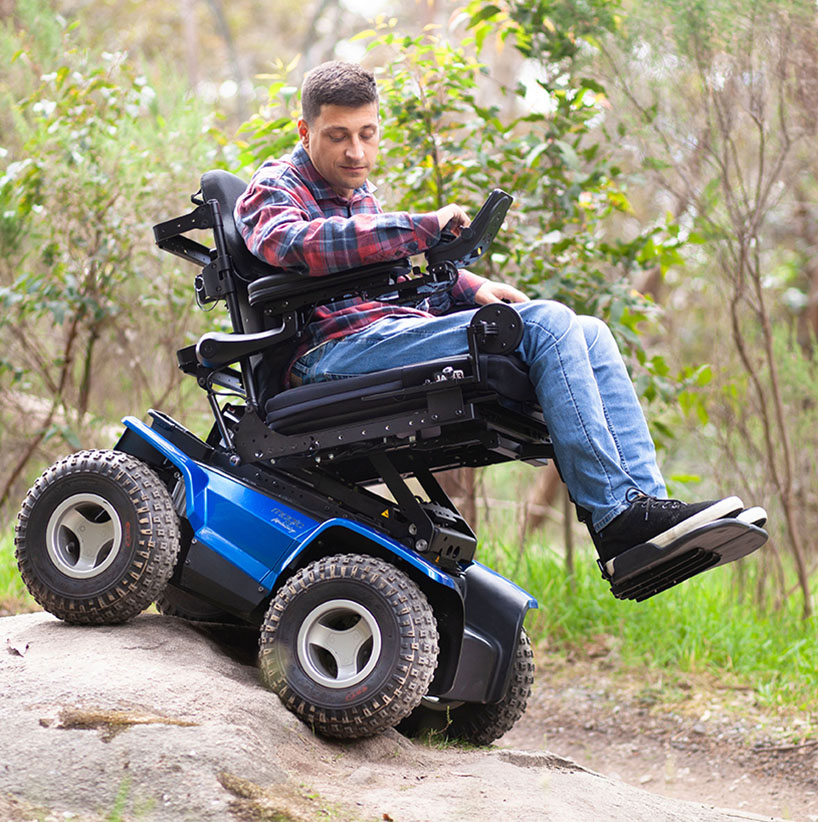

    Unstoppable off-road traction

    Each of the XT4’s four knobby off-road tyres are driven by high efficiency, high-torque 700 Watt motors. Power easily through mud, sand, snow or over kerbs and other obstacles. Fitted with two massive 115 Ahr batteries as standard, the XT4 will take you further off-road than ever before.

  • Superior patented suspension

    Front and rear wheels are mounted on their own pivoting arms that adjust independently to follow the contours of the terrain. This helps keep all four wheels on the ground to deliver more traction, a smoother ride, greater stability and more control across even the most extreme off-road terrains.

  • Servo powered steering for precise control

    The XT4 steers using a combination of differential wheel speeds and an industry-leading servo steering module. Even on slippery or low traction surfaces, the chair’s intuitive steering delivers a feeling of reliability, responsiveness and control, both in forward and reverse.

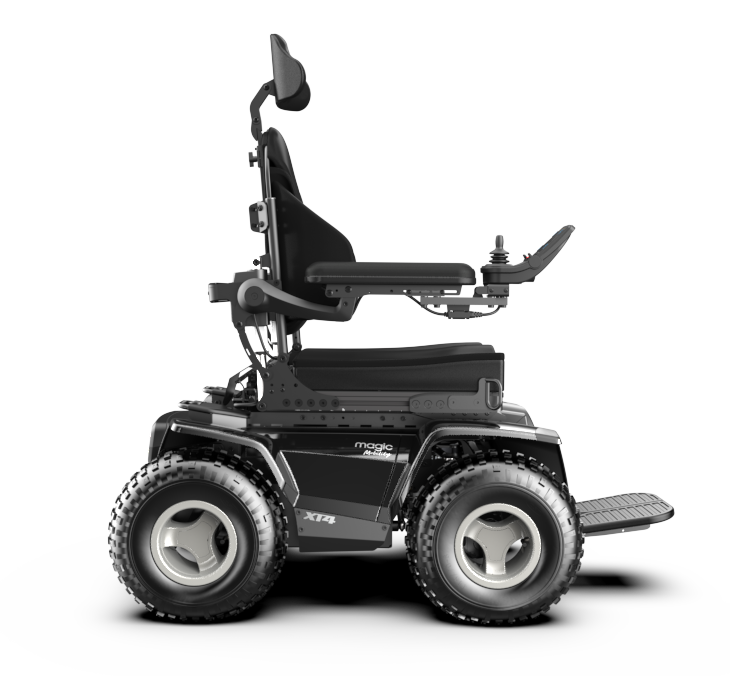

  • Colour options and styling

    Choose from two vibrant colours or sleek Midnight Black. Aerodynamically styled injection moulded body panels are easily detached for maintenance or replacement.

  • 004-done Created with Sketch.

    Proudly Australian made

    Since 1994, we have been designing, engineering and manufacturing highly robust, all terrain powerchairs in Melbourne, Australia, so that active users can experience a world that’s not flat.

  • Splash resistant (not waterproof)

    Please remember, the wheelchair has electric motors and must not be driven through water, into rivers, creeks or the sea. Magic Mobility wheelchairs meet Australian Standards 3696 and ISO7176.

Brochures and manuals

Magic Mobility produces world-class electric wheelchairs. Download your XT4 product brochure or Owner’s Manual here.

Technical specifications

FeatureSpecification
*Length of base1000mm / 39" (*legrest choice and seating size may increase chair length/width)
*Width of base700mm / 27.5"
Floor to top of seat pan height480mm / 19"
Ground Clearance125mm / 5"
User weight limit182kg / 400lb fixed frame, 160kg / 350lbs with lift & tilt
Top speed10kph / 6.2mph
Top speed at full seat elevation5km/h / 3.1mph
Turning Radius1410mm / 55.5"
Minimum chair weight (no power lift)185kg / 408lb
Standard chair weight (with power lif, tilt, recline & legrests)220kg / 485lb
Motors4 x 700W, Gear In Line
Motor IP rating 54 (splash resistant but not waterproof) The wheelchair has electric motors and must not be driven through water, into rivers, creeks or the sea.
WheelsOff-road pneumatic 145 / 70-6 black
Batteries115Ahr (C20)
ControllerR-Net controller with LCD display or LED option
Legrest optionsCentre post, manual elevating, power/manual elevating swingaway, centre mount power elevating
Backrest and seatAdjustable seat pan (12”/305mm deep to 24”/610mm wide) to fit MPS / Rehab or aftermarket seating options
ColoursThree colours standard
Tie down pointsCrash test compliant
The XT4 is absolutely amazing. Its given me freedom that I never dreamed possible as a quadriplegic. Such an epic machine. My only wish is that I had it sooner! Jaimen Hudson, Esperance, Western Australia
