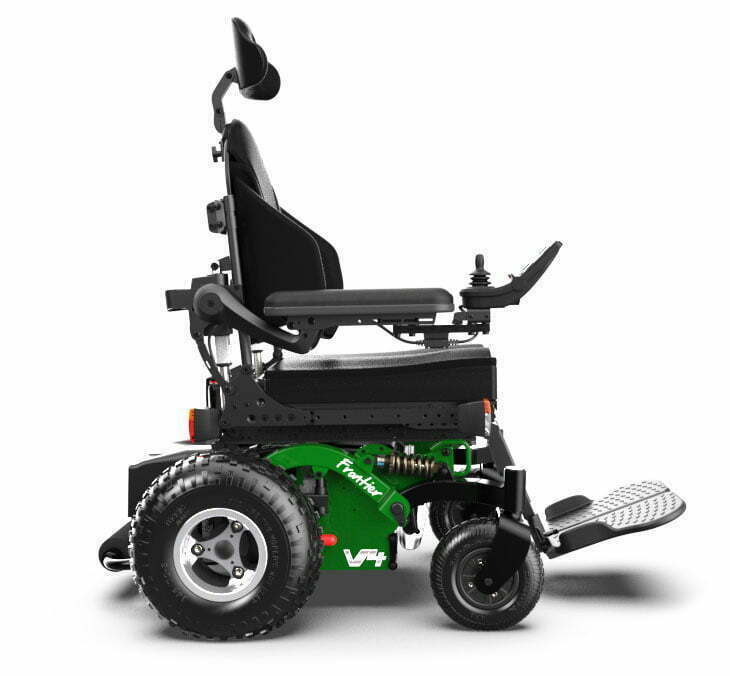

Frontier V4 – Off-road RWD Electric Wheelchair

Magic Mobility

Tailor your chair

  • Select a Colour:

    Forest Green

  • Select Wheels:

    Off-road

  • Select Tyre & Rim Colours:

    Black/Silver

  • *Premium colours (including hot pink, ultra violet, lucent lime, burnt orange, sunrise yellow, silver streak, forest green, army green and blaze blue) will incur an additional cost. Please note that premium colours may vary in the EU and USA. Silver rims are not available in the USA on the Off-road wheels.

    Disclaimer – Actual colours and designs may vary slightly over time due to differences in product finishes.  Please refer to physical examples for accurate representation.

Adventure Gained. Nothing Lost.

A powered wheelchair for those who know what they want. The thinking person’s chair, the V4 Rear Wheel Drive (RWD) is designed for those who are asking themselves the question about getting around the street or off-road, as well as indoors. Swap your Off-road tyres to either Crossover or Urban tyres to ensure you get the best powered wheelchair for your lifestyle.

  • Drive mode: Rear wheel drive
  • Motors: 86Nm Torque, 2 x 800W, Gear in Line
  • Environments: Everyday off-road
  • tire

    Compact with great off-road capability and stability

  • Powerful kerb climbing

  • Great battery life and distance

  • 004-done Created with Sketch.

    Proudly Australian made

    Since 1994, we have been designing, engineering and manufacturing highly robust, all terrain powerchairs in Melbourne, Australia so that active users can experience a world that’s not flat.

  • Splash resistant (not waterproof)

    Please remember, the wheelchair has electric motors and must not be driven through water, into rivers, creeks, or the sea. Magic Mobility wheelchairs meet Australian Standards 3696 and ISO7176.

Brochures and manuals

Magic Mobility produces world-class electric wheelchairs. Download your Frontier V4 RWD product brochure and Owner’s Manual here.

Technical specifications

FeaturesSpecifications
*Length of base930mm (*legrest choice and seating size may increase chair length/width)
*Width of base710mm (670mm with Hybrid wheels)
Floor to top of seat pan height435mm
Turning circle (radius) of base520mm
Weight limit182kg (400lbs), 155kg (340lbs) with lift and/or tilt
Top speed10kph (6.2mph)
Motors68Nm Torque, 800W, Gear in Line
Motor IP Rating 54 (splash resistant but not waterproof)The wheelchair has electric motors and must not be driven through water, into rivers, creeks, or the sea.
Wheels - Off-road14" black (note silver rims not available in the USA)
Wheels - Crossover14" (5.30/4.50-6) black or grey (pneumatic only)
Wheels - Hybrid14"x3" black or grey (solid or pneumatic)
Castors Ø220mm (2.80/2.50-4), black or grey (solid or pneumatic)
Batteries Gel
ControllerPenny & Giles controller with LCD display (R-net) or LED option
Legrest optionsCentre post, manual elevating, power/manual elevating swingaway, centre mount power elevating
Backrest and seatAdjustable seat pan (12” deep to 24” wide) to fit MPS / Rehab or aftermarket seating options
Tie down pointsCrash test compliant
Strong Electric Wheelchair
Our house has limited space, it has standard doorways, so I like the RWD chairs as they tend to be more compact than other chairs. Blair Garton, QLD Australia
