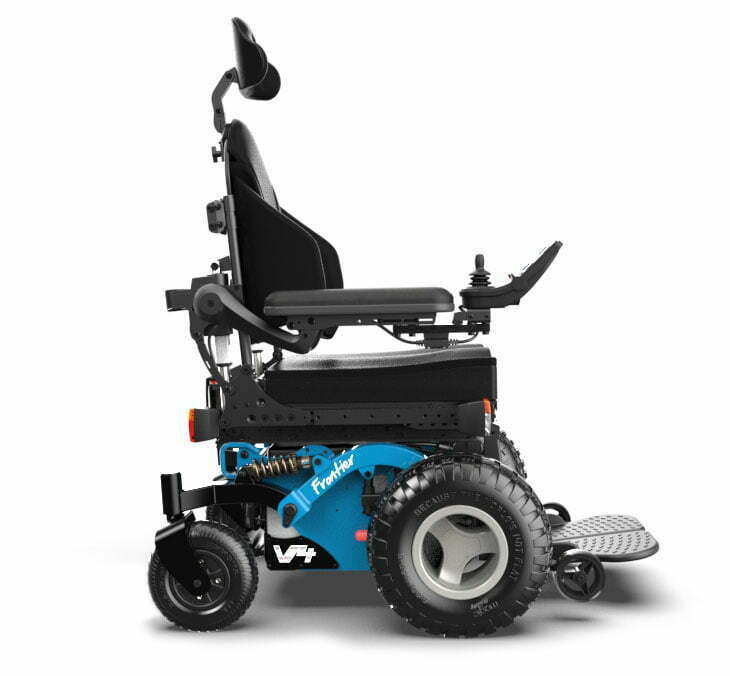

Frontier V4 – Crossover FWD Electric Wheelchair
Tailor your chair
For the road less travelled
A powered wheelchair for those who know what they want. The V4 Front Wheel Drive (FWD) offers a great solution to some of life’s most tricky corners. The thinking person’s chair, it’s designed for those who are asking themselves the question about getting around their homes with ease, using desks and tables or driving frequently. Choose off-road, crossover or urban wheels to ensure you get the best power wheelchair for your lifestyle.
- Drive mode: Front wheel drive
- Motors: 68 Nm Torque, 2 x 800W, Gear in Line
- Environments: Everyday off-road, urban and indoors
-
Compact with great off-road capability and stability
-
Powerful kerb climbing
-
Exceptionally smooth ride due to all wheel suspension
-
Great battery life and distance
-
Proudly Australian made
Since 1994, we have been designing, engineering and manufacturing highly robust, all terrain powerchairs in Melbourne, Australia so that active users can experience a world that’s not flat
-
Splash resistant (not waterproof)
Please remember, the wheelchair has electric motors and must not be driven through water, into rivers, creeks, or the sea. Magic Mobility wheelchairs meet Australian Standards 3696 and ISO7176.
Brochures and manuals
Magic Mobility produces world-class electric wheelchairs. Download your Frontier V4 FWD product brochure or Owner’s Manual here.
Technical specifications
Features | Specifications |
---|---|
*Length of base | 995mm / 39" (*legrest choice and seating size may increase chair length/width) |
*Width of base | 700mm / 27.5" |
Floor to top of seat pan height | 435mm / 17" |
Turning circle (radius) of base | 525mm / 20.5" |
User Weight limit | 182kg / 401lb fixed frame, 155kg / 341lbs with lift &/or tilt |
Top speed | 10kph (6.2mph) |
Top speed at full seat elevation | 5km/h / 3.1mph |
Motors | 2 x 68Nm Torque, 800W, Gear in Line |
Motor IP Rating 54 (splash resistant but not waterproof) | The wheelchair has electric motors and must not be driven through water, into rivers, creeks, or the sea |
Wheels - Crossover | 14" (5.30/4.50/6) black or grey (pneumatic only) |
Castors | Ø220mm (2.80/2.50-4), black or grey (solid or pneumatic) |
Batteries | Gel |
Controller | Penny & Giles with LCD display (R-net) or LED option |
Legrest options | Centre post, manual elevating, power/manual elevating swingaway, centre mount power elevating |
Backrest and seat | Adjustable seat pan (12” deep to 24” wide) to fit MPS / Rehab or aftermarket seating options |
Tie down points | Crash test compliant |
